DATA SHEET # CARGO KIT

Data Scanner C4RGO-Kit

A REAL JOLLY TO SATISFY EVERY INTEGRATION AND POSITIONING REQUEST.

Ready for a substantial elimination of the process complexities for the acquisition and transmission of data and the increase in operational flexibility with an evident and immediate reduction in costs ? The C4RGO-Kit solution produced by CONSITECH are designed to facilitate continuous work flow and process improvement through advanced software packages and tested and certified vision systems. In particular, with the”Kit” solution it is easy to develop customized programs to meet particular needs.
C4RGO-Dimensioner offers a precise and immediate measurement capability, fundamental to verify and guarantee the correctness of the goods data to the company systems.

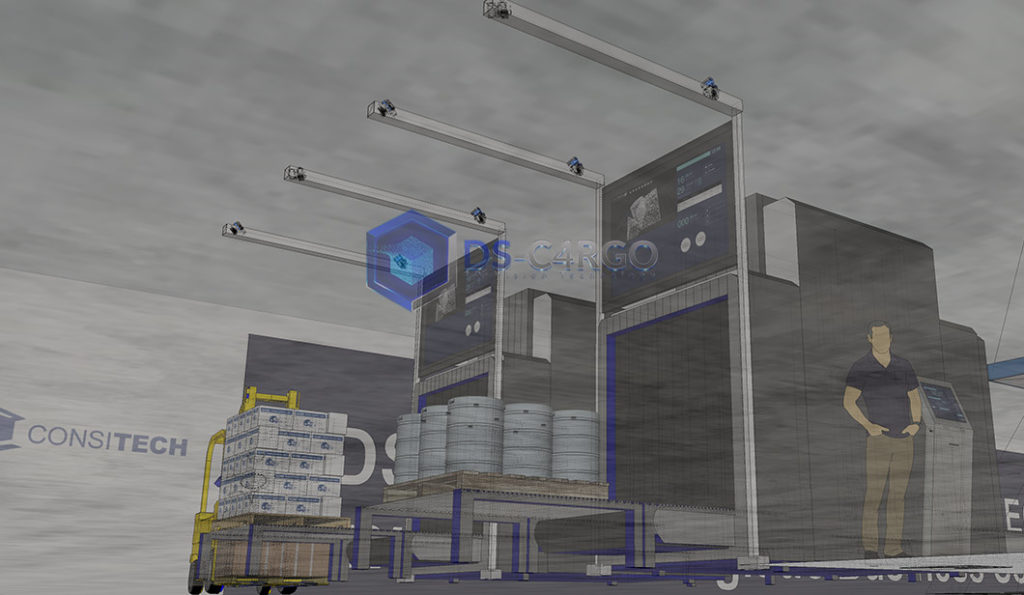

In addition to adapting to any existing environment and structure, allows to integrate and evolve the technologies already existing in the company such as X-Ray machines, scales, idle and motorized roller conveyors, forklifts, trans-pallets, forklifts and much more.
C4RGO-Kit improves working methods, simplifies use and increases the speed and precision of data and work-flow. It adapts to all spaces where goods pass through, and takes advantage of its structural flexibility to adapt to any type of environment, including the outdoors.

SPEED PROCESSING MEASUREMENTS & DATA TRANSMISSION

N ° 1 Standard object

3 seconds*

” Multi-Object ” – Full Area – CUSTOM

min 5″ / max ??” seconds*

* Times depend on the size of the surface and are calculated for “Volume Type = In-Bound” – The system processes 4 volumetric types.

MEASURING CAPACITY

Measurement accuracy *

± 1,5/2/3/5 cm

Minimum measurement size *

Height: 20 cm | Width: 25 cm | Length: 25 cm

Maximum measurement size *

Height: X00 cm | Width: X00 cm | Length: X00 cm

* The reference value is calculated according to the size of the detector [Menu- SOLUTIONS – Models]

TYPES OF RECOMMENDED ITEMS

MINI

PARCEL

CASES & BOXES

AIR PALLETS & PALLETS

LARGE, IRREGULAR & OUT OF SHAPE

ULD

* *The number of objects detectable simultaneously depends on the size of the objects, the dedicated surface and the position of the detector [H]

FEATURES & PERFORMANCES

Dimensional measurement of static & moving objects

Recognizes, Counts and Measures objects with both regular and irregular shapes

Photographs of the goods in detail with the measurements both in the car, on the company systems and in the C4RGO-Cloud

Consistent performance in any lighting (even in the dark)

Detect all colors and packaging materials *

Measure the colored shrink wrappers

Measure transparent shrink wrap

Detect protrusions over 3 cm

* Color Black, glossy Black and surfaces with over 90% high reflectance (ex: mirrors / silver paper) do not guarantee compliance with tolerances.

OPERATING DATA

Minimum operating temperatures

– 10° C

Maximum operating temperatures

+ 50° C

Degree of protection

IP 65 / IP 67

Parameter setting – Interface

Ethernet TCP/IP

Foreign light immunity [klx]

8;…*****

Operating distance

500 … 7500 [mm]

REQUIREMENTS FOR INSTALLATION

Space Required

Depending on the customer’s needs and the size of the system

Environments

[ INDOOR / OUTDOOR* ]

Positioning mode

Ceiling / Wall / Ground / Self-supporting Structure

Positioning distance of sensors from objects

Small [40/120 cm] # Medium / Large [2.6 / 8.0 m]

Supply

Small [220V] # Medium | Large | .. [by project]

Integration ** with floor weighing systems, for forklifts / trans-pallets / roller conveyors

Integration ** with pallet wrapping / neutral and motorized roller conveyors / Loading-Unloading Area

Integration ** with X-ray machine.

Integration ** with AGV – COBOT # NEW !

* Requires special protections for fogging of the lens / not directly exposed to bad weather: Under canopies (also Vision System)
** Limited to digital instruments with standard communication ports and protocols for data transmission (COM – IO-Link – Ethernet)

DATA MANAGEMENT

Weight – U.M. [gr-Kg / oz-lb]

Dimensions: Length | Hight | Width – U.M. [cm-m / inches-feet]

Volumes: 4 Typologies – U.M. [Cubic meter / Cubic foot]

Images

3D Shape

Operator Data & Survey Methodology

Locations & System ID C4RGO

CERTIFICATIONS

BODY

Certification type

Regulatory ref

Included

CE

ABSENCE OF DANGEROUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT (EEE)

Directive 2011/65 / CE (RoHS 2)

AUTOMATIC OPERATING WEIGHING INSTRUMENTS

MID -[ MI 006 ] Legal for Trade

AUTOMATIC OPERATING WEIGHING INSTRUMENTS

OILM -[ R 51 /106 / 110 ] Legal for Trade

WEIGHING INSTRUMENTS (USA – CANADA)

NTEP -[ 44 ] Legal for Trade

DIMENSION MEASURING INSTRUMENTS (EUROPE) *

MID – F [ MI 009 ] Legal for Trade

OPT.

VOLUME – MULTIDIMENSIONAL INSTRUMENTS (56 COUNTRIES) **

OILM – [ OIML R 129 ] Legal for Trade

OPT.

STRUCTURAL CERTIFICATION

#

OPT.

CONSTRUCTION CERTIFICATIONS

#

OPT.

* [ Certification “Legal for Trade” by ]

C4RGO Data Scanner: FREEDOM - CONTROL - EFFICIENCY

C4RGO – Dimensioner

SPEED – PRECISION – RELIABILITY – COLLABORATION

Simple and immediate access
You can’t go wrong, just press START !
Read the Neck Code and the rest, in a few seconds, takes care of C4RGO Dimensioner
Quick views and instant search
The list of the latest surveys is always ready. Filter by date, by carrier, by code AWB – BL – House – Marker – and ..
C4RGO-DMS for shadow less details
Calculate 4 different Volumes, and with the exclusive DEP you can recalculate later …
C4RGO-Cloud Chart & Report
Store, manage, analyze and share all shipping information !
