DATA SHEET # CARGO NRG

Data Scanner 3D  C4RGO-NRG



18 SECONDS IS THE TIME NEEDED TO PROCESS A NECK. COMPLETE WITH X-RAYS !

C4RGO-NRG is the most tested model on the market. In production since 2014, it was the first generation of C4RGO systems with 2D technology, appreciated by international freight forwarders with positions of Customs Agent for “safe goods”.
Click to edit the translation In 4 years we have improved the performance and the approach to problems, evolving the systems, and making the best use of the latest generation technologies such as the 3D Artificial Vision Chambers that offer more precise detections and in less time.

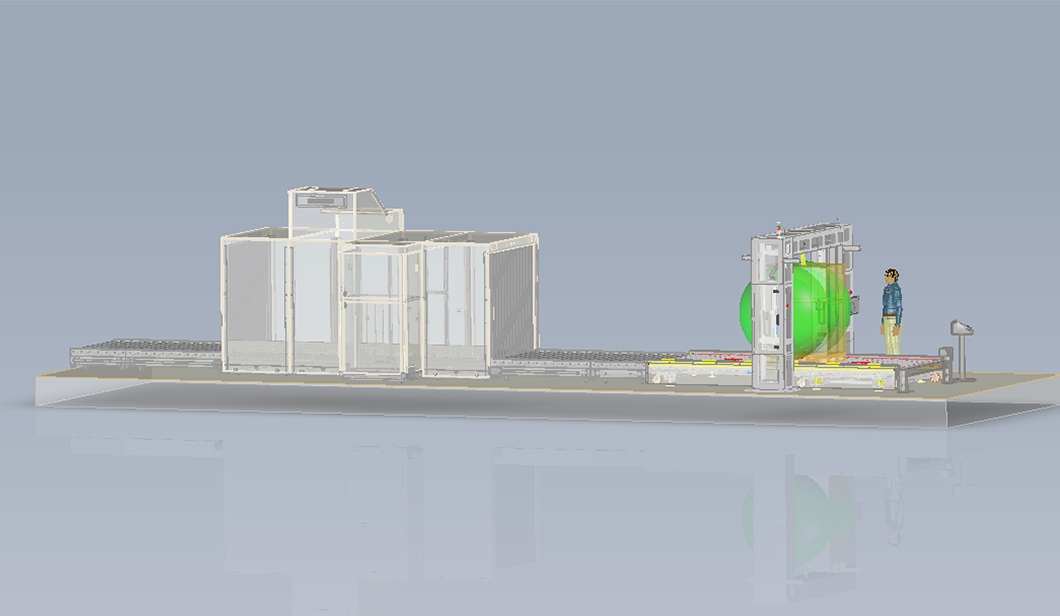

Click to edit the translation Although the amount of data has increased dramatically with the transition from 2D to 3D surveys, C4RGO -Dimensioner 2nd Generation does not impose any procedural changes to acquire all the data of the package, compared to what is not already done today. The process has no temporal burden compared to the normal passage of goods in the X-Ray Machine and always ensures complete control and transfer of data to the company system in real time:

  • BarCode acquisition
  • Weighing
  • Dimensional data acquisition [MV Opt. ]
  • Processing 4 types of volume
  • Photographs of the neck on the roller conveyor
  • 1 / 2 X-Ray photographs
  • 3D processing for TMS – WMS – ERP
  • System data generation
  • Transfer of data to the company system
Integrable systems:

SPEED PROCESSING MEASUREMENTS & DATA TRANSMISSION

N ° 1 Standard object

3″ seconds*

” Multi-Object ” – Full Area – Max 2,25 mq / H Max 1,6/1,8 mt

3″ seconds*

*Times are calculated for “Volume Type = In-Bound” – The system processes 4 volumetric types.

MEASURING CAPACITY

Measurement accuracy

± 2,00 cm

Minimum measurement size *

Height: 10 cm | Width: 20 cm | Length: 20 cm

Maximum measurement size **

Height: 180 cm | Width: 150 cm | Length: 150 cm

* The reference value is calculated according to the size of the detector [Menu- SOLUTIONS – Models]
** Indicative data. the constraint is given by the size of the X-Ray Machine.

TYPES OF RECOMMENDED ITEMS

IRREGULARS

PALLET

CASES & BOXES

*The number of objects detectable simultaneously depends on the size of the objects, the dedicated surface and the position of the detector [H]

FEATURES & PERFORMANCES

Dimensional measurement of static & moving objects

Recognizes, Counts and Measures objects with both regular and irregular shapes

Photographs of the goods in detail with the “on board” measurements, in the company systems and in the C4RGO-Cloud

Consistent performance in any lighting (even in the dark)

Take measurements with all colors and packaging materials *

Measure the colored shrink wrappers

Measure transparent shrink wrap

Detect protrusions over 3 cm

* Color Black, glossy Black and surfaces with over 90% high reflectance (ex: mirrors / silver paper) do not guarantee compliance with tolerances.

OPERATING DATA

Minimum operating temperatures

– 10° C

Maximum operating temperatures

+ 50° C

Degree of protection

IP 65 / IP 67

Setting Parameters – Interface

Ethernet TCP/IP

Foreign light immunity [klx]

8;…*****

Operating distance

500 … 1200 [mm]

REQUIREMENTS FOR INSTALLATION

Space Required

Depending on the size of the X-Ray Machine

Environments

[ INDOOR ]

Positioning mode

Integrated or Certified self-supporting structure

Positioning distance of sensors from objects

[ 70 /120 cm]

Supply

[ 220V ]

Supply of integrated weighing system with roller conveyor

* Requires special protections for fogging of the lens / not directly exposed to bad weather: Under canopies (also Vision System)
** Limited to digital instruments with standard communication ports and protocols for data transmission (COM – Io-link – Ethernet)

DATA MANAGEMENT

Weight – U.M. [ gr-Kg / oz-lb ]

Dimensions: Length | Height | Width – Length | Hight | Width – U.M. [cm-m / inches-feet]

Volumes: 4 Typologies – U.M. [Cubic meter / Cubic foot]

Images

3D Shape

Operator Data & Survey Methodology

Locations & System ID C4RGO

CERTIFICATIONS

BODY

Certification type

Regulatory Ref.

Included

CE

ABSENCE OF DANGEROUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT (EEE)

Directive 2011/65 / CE (RoHS 2)

AUTOMATIC OPERATING WEIGHING INSTRUMENTS

MID -[ MI 006 ] Legal for Trade

AUTOMATIC OPERATING WEIGHING INSTRUMENTS

OILM -[ R 51 /106 / 110 ] Legal for Trade

WEIGHING INSTRUMENTS (USA – CANADA)

NTEP -[ 44 ] Legal for Trade

DIMENSION MEASURING INSTRUMENTS (EUROPE) *

MID – F [ MI 009 ] Legal for Trade

OPT.

VOLUME – MULTIDIMENDIONAL INSTRUMENTS (56 COUNTRIES) **

OILM – [ OIML R 129 ] Legal for Trade

OPT.

STRUCTURAL CERTIFICATION

#

OPT.

CONSTRUCTION CERTIFICATIONS

#

OPT.

* [ Certification “Legal for Trade” by ]

TRACEABILITY - SECURITY - STURDINESS

C4RGO – Dimensioner

SPEED – PRECISION – RELIABILITY – COLLABORATION

Simple and immediate access
You can’t go wrong, just press START !
Read the Neck Code and the rest, in a few seconds, takes care of C4RGO Dimensioner
Quick views and instant search
The list of the latest surveys is always ready. Filter by date, by carrier, by code AWB – BL – House – Marker – and ..
C4RGO-DMS for shadow less details
Calculate 4 different Volumes, and with the exclusive DEP you can recalculate later …
C4RGO-CloudChart & Report
Store, manage, analyze and share all shipping information !
